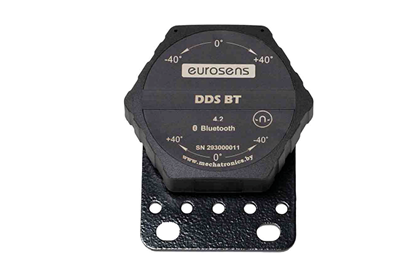

Bluetooth axle load sensor eurosens DDS BT is used to measure axle load in vehicles with leaf spring suspension and uses the leaf spring deformation (suspension deflection) measurement method. The calibration procedure of the sensor eurosens@ DDS BT is performed on a smartphone via an Android app.
Power supply
3.6V
Output interface
BLE 4.2
Transmission mode
Advertising Packets
Transmission range, up to
200 m
Measured angles, range
-40 to ±40
Ambient operating temperature
-40 to ±85 °C
Ingress protection rating
IP 67
Autonomous sensor with long range of communication and high accuracy of data reading.
Powered by a built-in ER14505 battery which provides up to 5 years of sensor operation.
Compatibility with popular GPS trackers (Navtelecom, Teltonika, Galileosky, etc.)
One sensor can support up to 3 calibration tables simultaneously.
