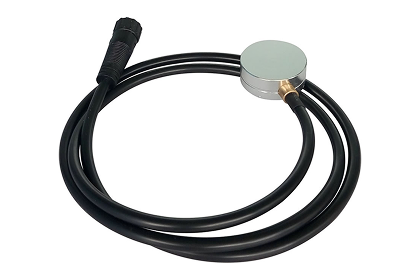

Ultrasonic Fuel Level Sensor
Ultrasonic liquid level sensor is the use of ultrasonic echo ranging original, To realize the measurement of liquid level height. The sensor is mounted on the bottom of the tank. On the outside, an ultrasonic signal is sent trom the bottom, Which is reflected back to the Oil surface. Then calculate the liquid level height according to the time and speed. At the same time, we combine our unique signal processing technology to overcome the container. Wall influence, thus achieving high precision non-contact measurement.
Operating voltage
9~36VDC
Operating power consumption
0.36W/12VDC
Operating temperature
-30'C~+800C
Measuring range
3~100cm
Measurement accuracy
±0.5%FS
Measurement resolution
0.1mm
Sensor specification
Diameter 33mm, height 12.7mm, line length 1m
Class of protection
IP67
Communication interface
RS232(TUB01)/RS485(TUB02)
Communication port parameter
Baud rate Default 9600 (Baud rate can be configured.) No check bit, 8 data bit, 1 stop bit, no flow control
Fuel tank material
Conventional oil tanks such as aluminum/iron/plastic can be used

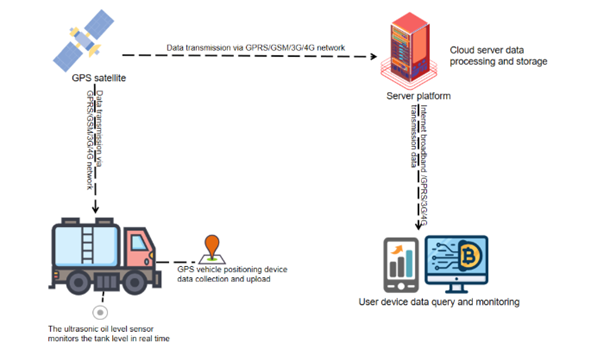

The sensor uses the ultrasonic ranging principle to detect the fuel level of the tank, and sends data to the fuel consumption system platform through the GPS/ BD terminal. The platform converts the liquid level data into the fuel amount through the calibration algorithm, so as to achieve the purpose of real-time monitoring of vehicle fuel consumption and help customers solve the following problems:
Real-time and accurate Oil level monitoring
Guard against oil theft
Optimize operating costs
Optimize driver behavior
More effective statistical decision making
