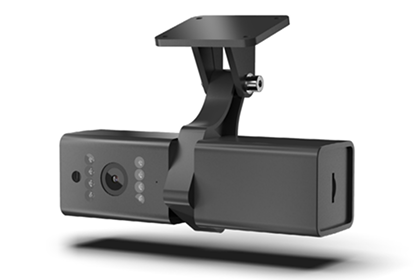

Teltonika DualCam
Teltonika DualCam solution is perfect for capturing videos or pictures of the events that might occur on the road, e.g. crash. Mounted on the vehicle front window, two cameras are used, front and rear, to record videos before and after the events, take photos periodically or by request and send all data to the server. Besides, the innovative solution ensures the safety of passengers as recordings are made of what is happening inside the vehicle.
You can also get the videos or pictures on all scenarios, such as green driving, idling detection, unplug detection, towing detection, or geofence, by sending a request from server. Connected over RS232, trackers FMC125 or FMC650 of with dual camera support High Efficiency Video Coding (H265) for a fast video file delivery. For an easy implementation with server, we prepared a universal communication protocol.
Real time clock (RTC) synchronization
Available over FM (via NTP, NITZ or GNSS)
Picture resolution
1280x720 (default) (50KB transfer period 18 sec), configurable: 160x120; 320x240; 640x480; 1920x1080
IR Distance
2 Meters
Cable length
RS232 (3.5 m)
Video compression
H.265
Video resolution
720P (20 sec. - 6MB, transfer period -320sec.)
Video storage
2psc, MicroSD card (Max 64G up to 40 hours of video)
Supported by
FMCI 25, FMBI 25, FMx22S. FMC650
Day & Night Vision Effect
Day (Color), Night (Black & White)
Angle Of View
Horizontal 1200, Vertical 700
Dual Camera
Front and Rear (equal characteristics)
Camera casing dimensions
126.2 x 36.6 x 36.6 mm
Camera mounting
Sticky tape (3M) or screws
Certificates
CE, FCC, RoHS
Input voltage range
Max. 8.4 w (12 v/24 v)
Working temperature and humidity
30C-85C
Stand-by electric current
220mA
